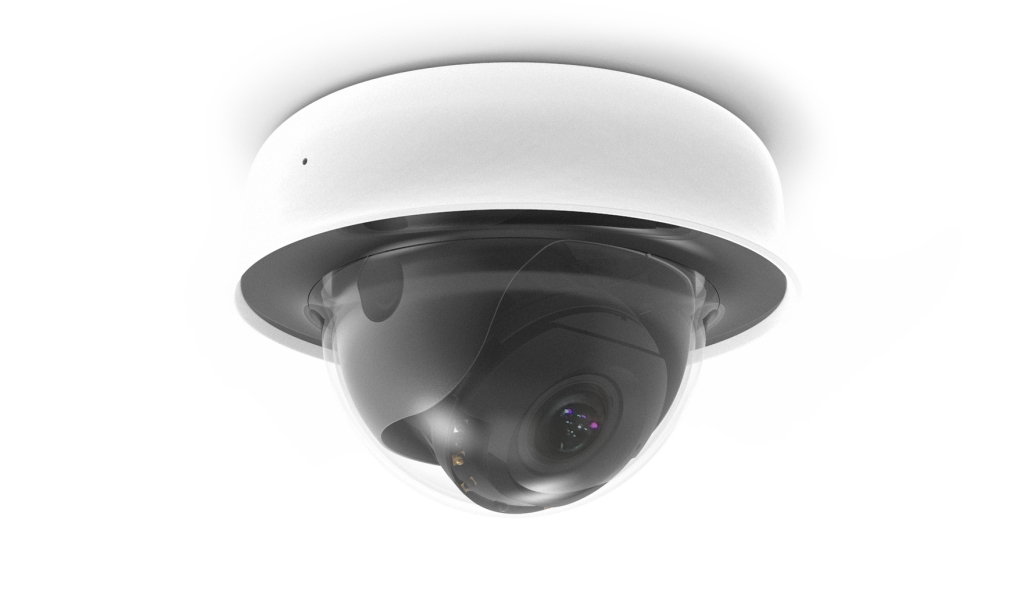

Caméra Cisco Meraki MV22
Les Cisco Meraki MV22 et la MV72 font leur entrée dans les nouveaux produits de la marque ! Alors quelles sont leurs particularités ?
La MV22 existe uniquement avec un stockage de 256 GB et propose une optique 3 à 9mm "varifocal" c'est à dire ajustable à distance. Elle propose une résolution de 1080p avec encodage H264, embarque du WiFi mais aussi de l'Ethernet PoE, l'éclairage infrarouge jusqu'à 30 mètres.
Fiche technique de la MV22 :
  • Camera
    • 1/3” 4MP (2688×1520) progressive CMOS image sensor
    • 256GB high endurance solid state storage
    • 3-9mm focal length
    • f/1.2-2.3 aperture
    • Field of view:
      • Horizontal 36° - 122°
      • Vertical 20° - 57°
      • Diagonal 42° - 138°
  • Lens adjustment range:
    • Tilt 65°
    • Rotation +/- 90°
    • Pan 354°
  • 1/30s to 1/32,000s shutter speed
  • Minimum illumination 0.18 Lux (standard recording) and 0.01 Lux (night mode)
  • Built-in IR illuminators, effective up to 30m (98ft)
  • Video
    • 1080p HD video recording (1920×1080) with H.264 encoding, up to 20fps
    • Cloud augmented edge storage (locally stored video with metadata in the cloud)
    • Optimized retention settings (scheduling and motion-based) for variable retention
    • Up to 40 days of 24/7 continuous video storage per camera*
    • Direct live streaming with no client software (native browser playback)**
    • Stream video anywhere with automatic cloud proxy
    • High dynamic range (HDR)
  • Data Security
    • Full disk encryption (AES 256-bit)
    • Automatically purchased and provisioned TLS certificates (publicly-signed)
    • Management encryption and two-factor authentication
  • Networking
    • 1× 10/100/1000 Base-T Ethernet (RJ45)
    • Dual band WLAN with antenna diversity supporting 2.4GHz and 5GHz
    • 802.11 a/b/g/n/ac
    • DSCP traffic marking
  • Power
    • Power consumption 12.75W maximum via 802.3af PoE
  • Features
    • Cloud managed with complete integration into the Meraki dashboard
    • Plug and play deployment with self-configuration
    • Dynamic day-to-night transition with IR illumination
    • Noise optimized motion indexing engine with historical search
    • Shared video wall with individual layouts supporting multiple cameras
    • Selective export capability with cloud proxy (with watermarked timestamps)
    • Highly granular view, review, and export user permissions with SAML integration
    • Motion heat maps for relative hourly or day-by-day motion overview
    • Motion alerts
  • Wireless
    • 2.4 GHz 802.11b/g/n radio
    • 5 GHz 802.11a/n/ac radio
    • Supported frequence bands (country-specific restrictions apply):
      • 2.412 - 2.484 GHz
      • 5.150 - 5.250 GHz (UNII-1)
      • 5.250 - 5.350 GHz (UNII-2)
      • 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
      • 5.725 - 5.825 GHz (UNII-3)
    • 802.11ac and 802.11n Capabilities
      • 1×1 with one spatial stream
      • MU-MIMO support
        • 20 and 40 MHz channels (802.11n)
        • 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Antenna
    • Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)
  • Security
    • WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TTLS
    • TKIP and AES encryption
  • Environment
    • Starting temperature: 0°C - 45°C (32°F - 113°F)
    • Working temperature: 0°C - 45°C (32°F - 113°F)
  • In the Box
    • Quick start & installation guide
    • MV camera hardware
    • Wall mounting kit
    • Junction box adapter plate
  • Physical Characteristics
    • Dimensions 149mm × 97mm (diameter x height)
    • Varifocal lens (up to 3× optical zoom)
    • Weight without mounting plate 706g
    • Weight with mounting plate 842g
    • Female RJ45 Ethernet connector
    • Multicolor, multifunction status LED
    • Reset button
  • Ratings
    • IK08 vandal-resistance
  • Warranty
    • 3 year hardware warranty with advanced replacement
    Référence produit :
    • MV22-HW: Varifocal MV22 Indoor HD Dome Camera With 256GB Storage
    • LIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)
    • MA-INJ-4-XX: Meraki 802.3at Power over Ethernet injector (XX = US, EU, UK, or AU)
    • MA-PWR-MV-LV: Low voltage 12VDC/24VAC input PoE injector for MV cameras (coax converter)
    Cisco Meraki lance ses caméras MV22 et MV72
    La MV72 propose les mêmes caractéristiques mais y ajoute l'étanchéité IP67 et la résistance IK10+Plus de détails techniques sur la MV72 :
    • 1/3” 4MP (2688×1520) progressive CMOS image sensor
    • 256GB high endurance solid state storage
    • 3-9mm focal length
    • f/1.2-2.3 aperture
    • Field of view: Horizontal 36° - 122° / Vertical 20° - 57° / Diagonal 42° - 138°
    • Lens adjustment range: Tilt 65° Rotation +/- 90° Pan 354°
    • 1/30s to 1/32,000s shutter speed
    • Minimum illumination 0.18 Lux (standard recording) and 0.01 Lux (night mode)
    • Built-in IR illuminators, effective up to 30m (98ft)
    • Video
      • 1080p HD video recording (1920×1080) with H.264 encoding, up to 20fps
      • Cloud augmented edge storage (locally stored video with metadata in the cloud)
      • Optimized retention settings (scheduling and motion-based) for variable retention
      • Up to 40 days of 24/7 continuous video storage per camera*
      • Direct live streaming with no client software (native browser playback)**
      • Stream video anywhere with automatic cloud proxy
      • High dynamic range (HDR)
  • Data Security
    • Full disk encryption (AES 256-bit)
    • Automatically purchased and provisioned TLS certificates (publicly-signed)
    • Management encryption and two-factor authentication
  • Networking
    • 1× 10/100/1000 Base-T Ethernet (RJ45)
    • Dual band WLAN with antenna diversity supporting 2.4GHz and 5GHz
    • 802.11 a/b/g/n/ac
    • DSCP traffic marking
  • Power
    • Power consumption 12.8W maximum via 802.3af PoE
    • Power consumption when using heater 23.4W maximum via 802.3af
  • Features
    • Cloud managed with complete integration into the Meraki dashboard
    • Plug and play deployment with self-configuration
    • Dynamic day-to-night transition with IR illumination
    • Noise optimized motion indexing engine with historical search
    • Shared video wall with individual layouts supporting multiple cameras
    • Selective export capability with cloud proxy (with watermarked timestamps)
    • Highly granular view, review, and export user permissions with SAML integration
    • Motion heat maps for relative hourly or day-by-day motion overview
    • Motion alerts
  • Wireless
    • 2.4 GHz 802.11b/g/n radio
    • 5 GHz 802.11a/n/ac radio
    • Supported frequence bands (country-specific restrictions apply):
      • 2.412 - 2.484 GHz
      • 5.150 - 5.250 GHz (UNII-1)
      • 5.250 - 5.350 GHz (UNII-2)
      • 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
      • 5.725 - 5.825 GHz (UNII-3)
  • 802.11ac and 802.11n Capabilities
    • 1×1 with one spatial stream
    • MU-MIMO support
      • 20 and 40 MHz channels (802.11n)
      • 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Antenna
    • Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)
  • Security
    • WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TTLS
    • TKIP and AES encryption
  • Environment
    • Starting temperature: -40°C - 50°C (-40°F - 122°F)
    • Working temperature: 0°C - 50°C (32°F - 122°F)
  • In the Box
    • Quick start & installation guide
    • MV camera hardware
    • Wall mounting kit
    • Junction box adapter plate
  • Physical Characteristics
    • Dimensions 165mm × 103mm (diameter x height)
    • Varifocal lens (up to 3× optical zoom)
    • Weight without mounting plate 1247g
    • Weight with mounting plate 1353g
    • Female RJ45 Ethernet connector
    • Multicolor, multifunction status LED
    • Reset button
  • Ratings
    • IK10 vandal-resistance
    • IP67 weather-proofing
  • Warranty
    • 3 year hardware warranty with advanced replacement
    Référence produit:
    • La caméra MV72: MV72-HW: Varifocal MV72 Indoor HD Dome Camera With 256GB Storage
    • La licence: LIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)
    • L'injecteur PoE: MA-INJ-4-XX: Meraki 802.3at Power over Ethernet injector (XX = US, EU, UK, or AU)

    Questions fréquentes

    Qu’apportent MV22 et MV72 par rapport aux premiers modèles ?

    Elles apportent notamment une résolution 1080p, davantage de stockage, un objectif varifocal et une approche plus avancée du stockage edge et de la consultation via le cloud Meraki.

    À quoi sert l’objectif varifocal ?

    Il permet d’ajuster le cadrage et le niveau de zoom optique selon la zone à couvrir, sans devoir remplacer la caméra ou accepter un angle inadapté.

    Quelle différence entre MV22 et MV72 ?

    La MV22 est pensée pour l’intérieur. La MV72 reprend la même logique fonctionnelle dans un boîtier extérieur renforcé, avec protection contre les conditions difficiles.

    Pourquoi le stockage edge est-il important ?

    Le stockage dans la caméra limite la dépendance à un enregistreur central et réduit le trafic réseau permanent. Le cloud sert surtout à l’administration et à l’accès aux vidéos.

    Quels prérequis réseau prévoir ?

    Il faut prévoir le PoE, le débit disponible, les VLAN, les règles firewall, la rétention souhaitée, les droits d’accès et la supervision des caméras.
